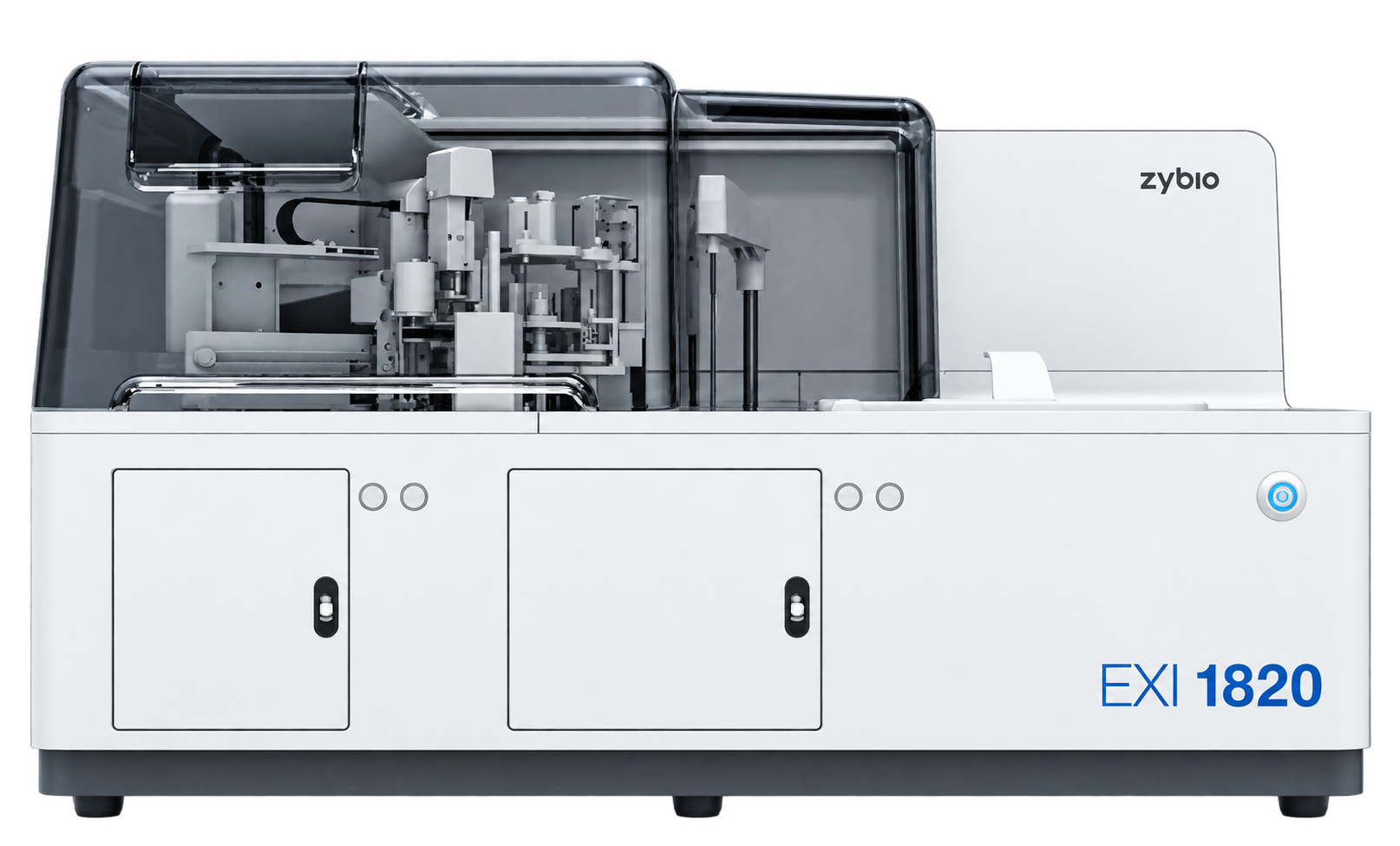

EXI 1820 Fully Automated Chemiluminescence Immunoassay Analyzer
|
Parameter |
Specification |
|---|---|
|
Model |
EXI 1820 |
|
Measurement Principle |
Micron superparamagnetic particles platform + ALP |
|
Throughput |
Up to 200 tests/hour |
|
Parameter |
Specification |
|---|---|
|
Sample Feeder |
Continuous sample loading and unloading |
|
Test Mode |
Random, Batch, STAT mode |
|
Sample Position |
50 |
|
STAT Position |
1 independent emergency sample position |
|
Sample/Reagent Probe |
1 steel probe with probe blockage detection, liquid level detection, volume tracking and 3D collision protection |
|
Sample Volume |
5–100 µL, increment of 1 µL |
|
Sample Type |
Serum, plasma, urine |
|
Sample Tube |
Micro cuvettes and original blood sampling tube |
|
Parameter |
Specification |
|---|---|
|
Reagent Position |
20 |
|
Cooling System |
2–8°C, 24-hour cooling |
|
Reagent Pack |
50 tests/kit, 100 tests/kit |
|
Reagent Scanning |
Built-in/external bar code reader |
|
Reagent Volume |
20–150 µL, increment of 1 µL |
|
Substrate Loading |
Capable of continuous loading during testing |
|
Substrate Heating |
Constant heating |
|
Parameter |
Specification |
|---|---|
|
Incubation Temperature |
37°C ± 0.3°C |
|
Incubation Positions |
100 |
|
Separation System |
3-phase magnetic separation |
|
Parameter |
Specification |
|---|---|
|
Detection Mode |
Photon counting |
|
Signal Detector |
PMT photon counter |
|
Temperature |
37°C ± 0.3°C |
|
Mixing Unit |
Non-touch vortex mixing |
|
Parameter |
Specification |
|---|---|
|
Operating System |
Windows 10 |
|
Connectivity |
LIS, LAN port, RS232 port, USB port |
|
Parameter |
Specification |
|---|---|
|
Cuvette |
Disposable cuvette |
|
Cuvette Loading |
Auto-loading, up to 500 cuvettes, continuous loading |
|
Waste Collection |
2 waste containers, 300 cuvettes per box |
|
Parameter |
Specification |
|---|---|
|
Power Supply |
100–240 V, 50/60 Hz |
|
Input Power |
900 VA |
|
Operating Temperature |
10–30°C |
|
Relative Humidity |
35% RH–85% RH, without condensation |
|
Dimensions (W × D × H) |
1060 × 610 × 620 mm |
|
Weight |
145 kg |
|
Altitude Height |
400–3000 m |
